ZAPCO ADSP-Z8 IV-8

Product Name

Model :ADSP-Z8 IV-8
Brand :ZAPCO
Specificity :8 채널 8 채널 DSP 증폭기

Product description

DSP가 내장된 8체널 엠프로 블루투스까지 내장하고 있습니다.
휴대폰으로 컨트롤도 가능하고 순정과 100프로 또는 일정부분의 연동으로 모든 차량에 적용될수있습니다.

Specification

DSP Processor: Cirrus Logic CS47048

Power: 150 MHz/32 bit/48 KHz

8-Channels

ADC: Cirrus Logic CS5368 24 bit/192 KHz

ADC Dynamic Range/THD: 114 dB/-105 dB

DAC: Cirrus Logic CS47048 32 bit/192 KHz

DAC Dynamic Range/THD: 108 dB/-98 dB

Low level (Pre)/Sensitivity: 8/1-5 VRMS

High Level (Spk In)/Sens.: 6/2-20 V

AUX Inputs/Sensitivity: 1/0.2-4 VRMS

Optical IN: 24 bit-192 KHz

Freq. Response (-3dB): 10 Hz - 22.5 KHz

S/N Ratio only DSP Digital Input: 110 dBA

S/N Ratio only DSP Analog Input: 106 dBA

S/N Ratio Amp + DSP at max. power: 95 dBA

THD+N only DSP Digital Input: 0,002 %

THD+N only DSP Analog Input: 0,005 %

THD+N Amplif. + DSP Analog Input: 0,07 %

Crosstalk at 1 Khz: 90 dB

Crosstalk Amplifier + DSP: 45 dB

Amp Power @ 4Ω: 8 x 80 watts

Amp Power @ 2Ω: 8 x 120 watts

Amp Power @ 4Ω Bridged: 4 x 240 watts

Amp Power @ 4Ω: 6 x 80 + 1 x 240 watts

Amp Power @ 2Ω: 6 x 120 + 1 x 240 w. (4 Ω)

F/R EQ: 1-6 ch Gr. & Par./31 poles

Effect EQ: 7-8 ch Gr. & Par./11 poles

Mute/Solo: Yes, each channel

Time Align. (Range/Steps): 0/15 ms / 0.02 ms

Max Delay (Cm/Steps): 515 cm / 0.68 cm

Polarity: 0/180°

Display (included): 1” LCD

Display (optional): 3” LCD Touch-Screen

Bluetooth Digital Streaming

PC/Display Connection: USB/6-pin Mini DIN

Unit Dimensions: 222(L) x 230(W) x 52(H)

Display Dim.: 111(L) x 49(W) x 16(H)

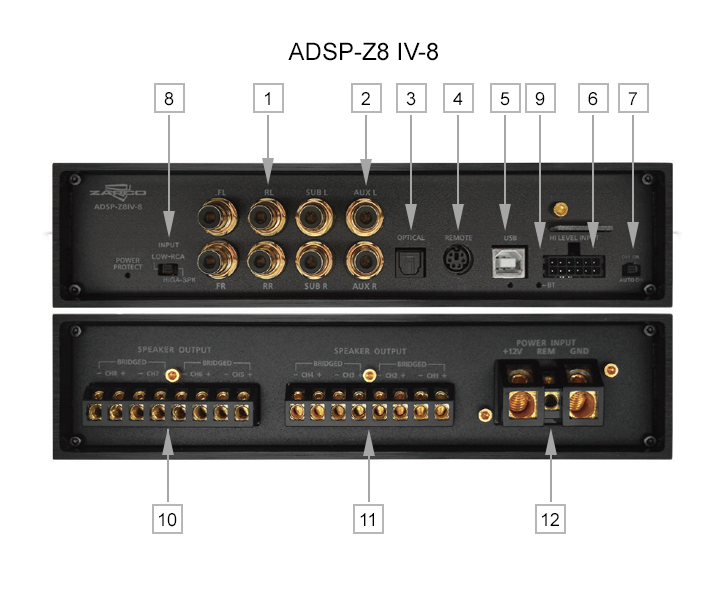

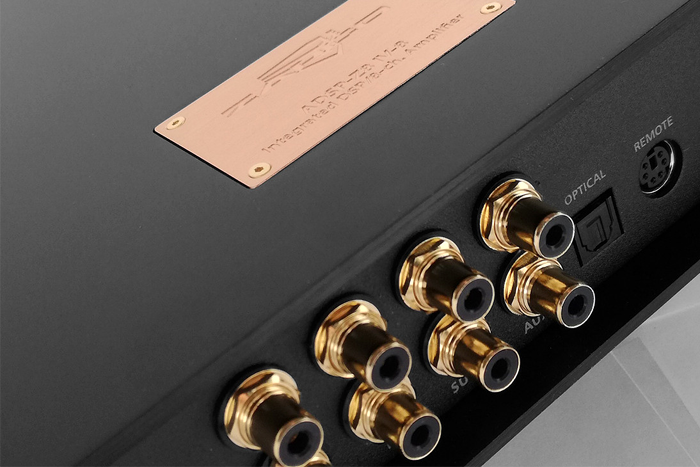

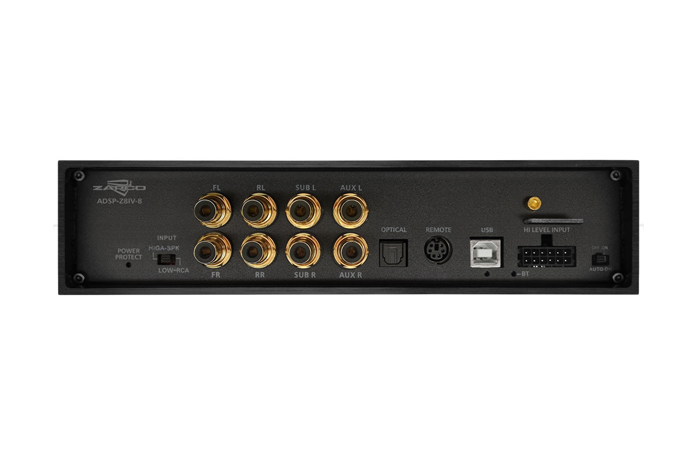

1. 6 channels of RCA inputs for the main source

2. 2 channels of RCA inputs for an Auxiliary source

3. Optical port for digital input

4. Dash remote port

5. USB connector for PC control. The indicator lights when the USB is connected

6. High level OEM input connector

7. On/Off switch for the auto-on function

8. Switch for high level/low level inputs

9. BT indicator blinks while looking for a Bluetooth device, then goes solid when it is paired

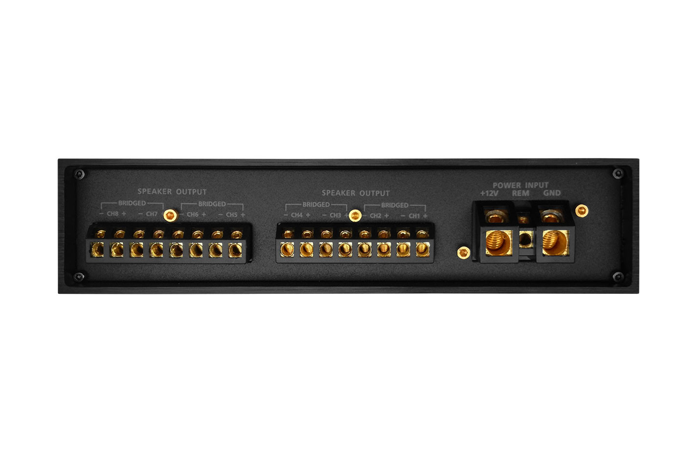

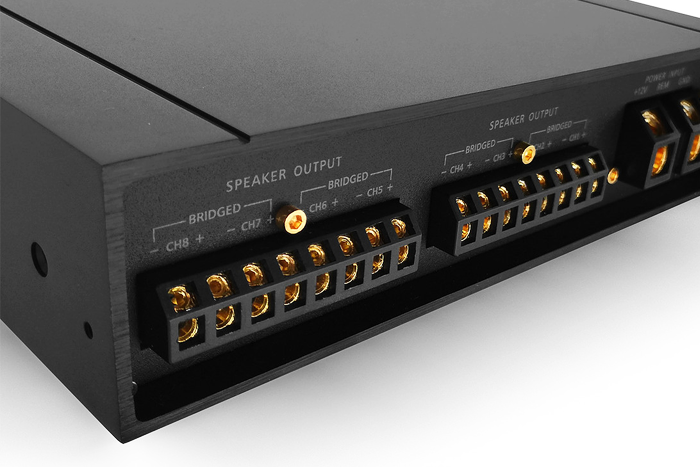

10. Speaker output connectors for Ch 5~8

11. Speaker output connectors for Ch 1~4 [Note 1: the Left Ch (odd) positive terminal and the Right Ch (even) negative terminal are used for bridging the speaker outputs. Note 2: the amp is stable at 2 ohms stereo or 4 ohms mono. The amp should not be run at 2 ohmsmono]

12. Main +12V connector, +12 trigger from head unit when the Auto-on is turned off, Main Ground connector

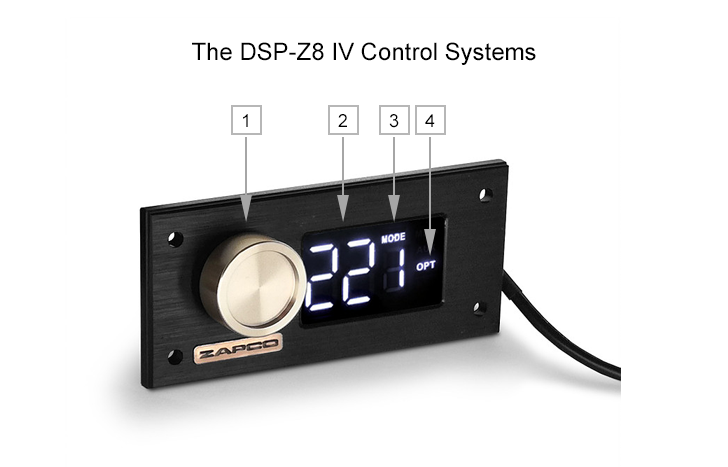

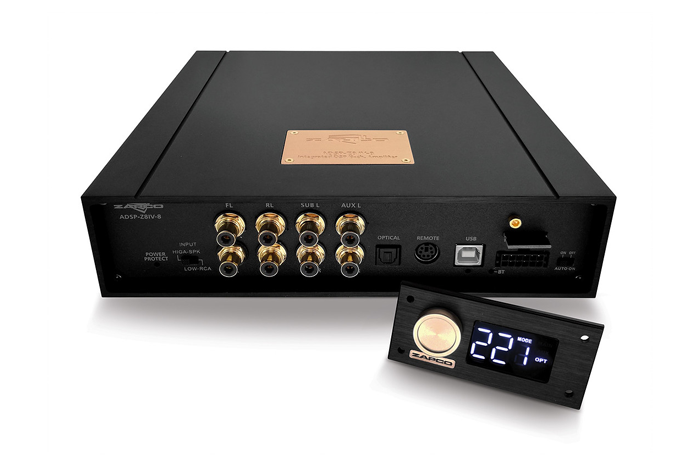

1. Unlike many remotes, the remote of the DSP-Z8 IV series is an integral part of the device. First it is a volume control, which is a must when you are using a full gain digital input. Secondly, the volume control is also a control for the bass output. If you are using Channels 7/8 for the bass, as most users do, you can push the volume control in one time and the bass level will begin to flash and it becomes an output level control for channels 7/8.

2. The readout normally gives you the volume level. If you push the Volume knob one time it gives you the bass level. If you don’t make any adjustments for about 15 seconds, it will return to reading volume.

3. If you push the Volume knob 2 times you will see only MODE and the mode number flashing. Mode is the memory preset. In mode function, the volume knob cycles through the presets that have been stored. Dial to the preset you want the push the volume knob once to get input source selection or twice to return. Any preset positions not used will not show up in the MODE choices.

4. If you press the volume knob three times you will enter Source Selection and you can choose Main, BT (Bluetooth Streaming), Aux, or Opt (Optical) by turning the volume knob to the input you want.
