Ability Audio
- MODEL : AO-189/180
- AO-189 :9”
- AO-180 :10.1”

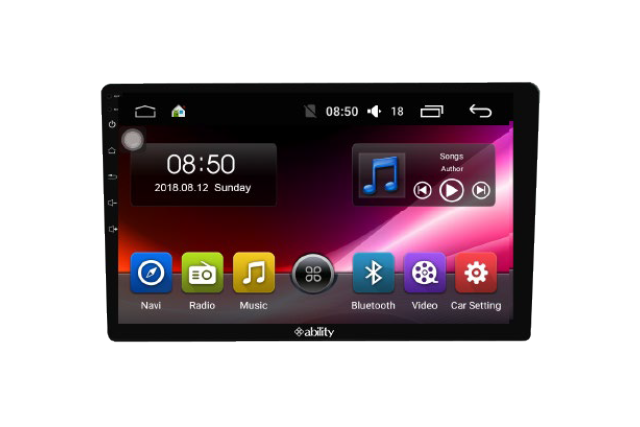

9” & 10.1” Android-based system
Powerful & Stable Processing platform
Hi-end Sound Quality
Integration with car CAN bus
On-line media & Navigation
AHD/TVI Video Rear Camera support
- Latest Android 8.1 Oreo Upgradable to higher
- Powerful CPU : Intel Airmont Octa-core SC9853, ROM 32GB /RAM 4GB DDR4.
- Reaching 60.000 Antutu Benmatch
- Optical Digital Output, outstanding sound quality & Immune to Ground Loop issue
- Integrated 4G SIM Card communication
- Versatile platform .. Fit almost all the popular car model
- Solid Built quality
Specifications :
- Screen size : 9” model AO-189
- Screen size : 10.1” model AO-180
- OS : Android 8.1 Oreo, upgradable to newer version
- CPU : Intel Airmont Octa-core , 14nm Microarchitecture, up to 1.8GHz
- RAM :4GB DDR4 / ROM: 32GB eMMC (MLC)
- Resolution : 1024*600 IPS capacitive touch screen and 2.5D touch panel
- Optical digital audio output : 1
- Audiophile-grade Digital to Analog Converter (option)
- USB output : 3(Fat 32, NTFS & HDD support)
- 5 x RCA Audio output, 2 x RCA Video output, 1 x RCA video input, 2 x RCA Aux input
- 1 x External microphone
- AHD/TVI 720p Rear Camera support
- Can Bus support
- Audio Power : 4 x 45 W / 4 Ohm Max, 4 x 26 W / 4 Ohm RMS
- Integrated 4G communication: GSM/WCDMA/TD-SCDMA /TDD-LTE/FDD-LTE
- Dual channel 16 Parametric EQ, Q factor adjustable
- Other Features :
- - 1080P Hardware Decoding and audio, video play
- - USB interface with camera, to record and store DVR(option)
- - Bluetooth A2DP,voice recognition, WIFI,FM/AM Radio, rear camera reverse display, Mobile phone Mirror link (Android & IOS)
- - Integrated positioning module can support GPS, Waze ,Google Map, etc
- - Carplay & Android Auto (Option)
- Operating temperature : -20~75℃
- Weight : approx. 2.2Kg
