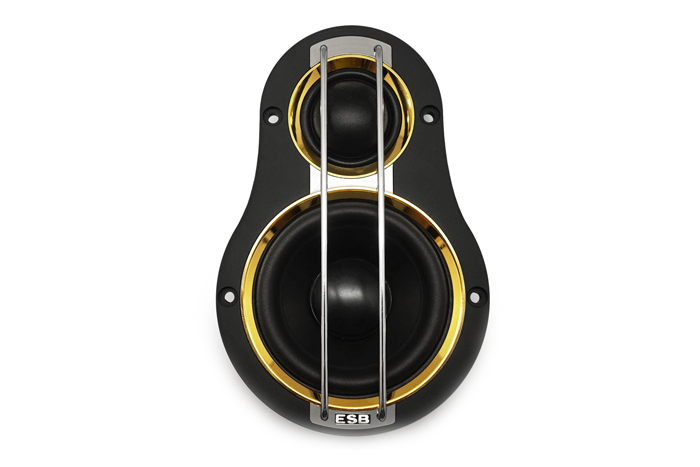

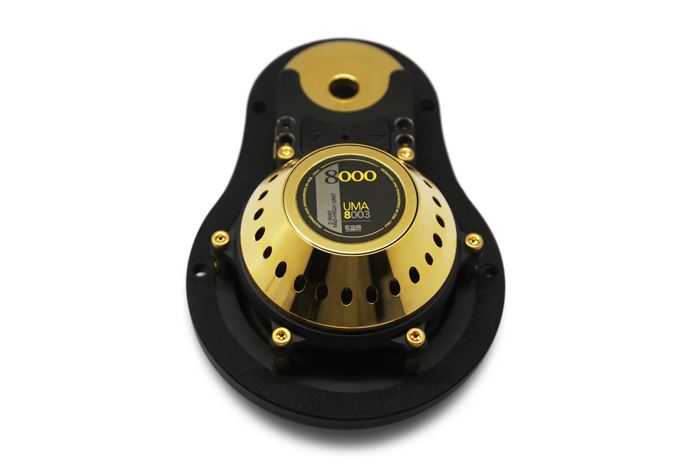

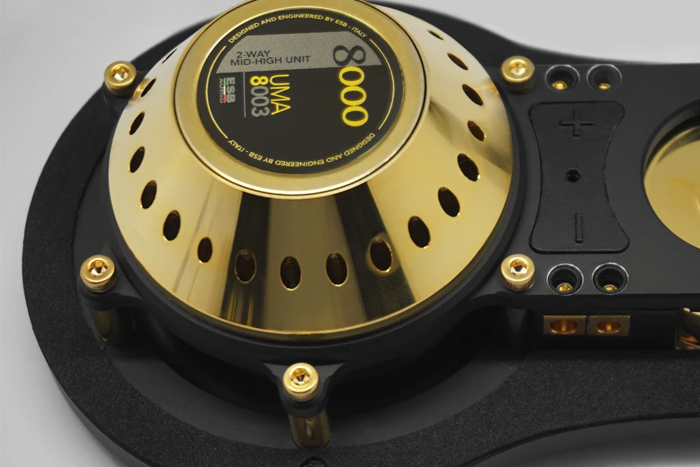

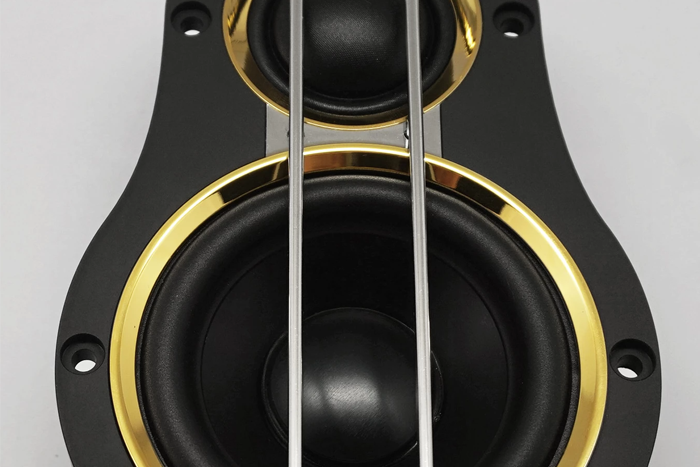

8003 UMA

Product Name

  • Model : 8003 UMA
  • Brand : ESB AUDIO
  • Specificity : 2-Way Mid-High Unit

Product description

1.1"/28 mm Dome Tweeter

3"/75 mm Cone Midrange

Specifications

Woofer
28 mm aluminum voice coil (tweeter)
Torcon® soft dome (tweeter)
Under-dome dB Cloth® damping material
High-grade neodymium magnet
Ferrofluid cooling and damping
NPPVTM exponential cone (midrange)
ConexTM progressive spider (midrange)
Computer optimized design
Motor metal parts CNC machined

Nominal Impedance
4 Ohm
Nominal Power Handling
120 Watt
Transient Power
240 Watt
Frequency Response
95 Hz ~ 25 KHz
Sensitivity
91 dB 1W/1m
