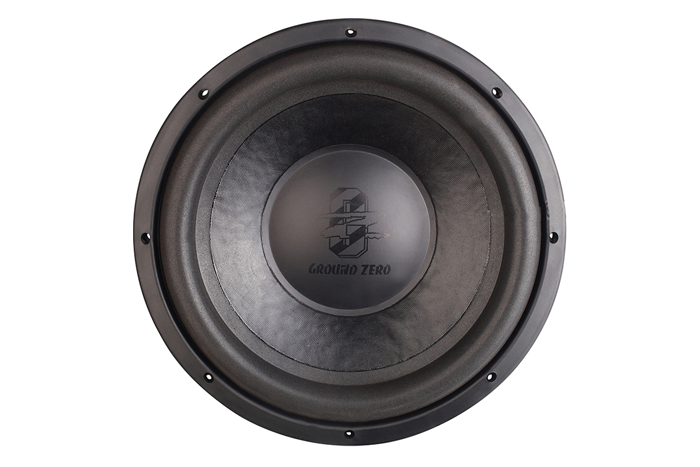

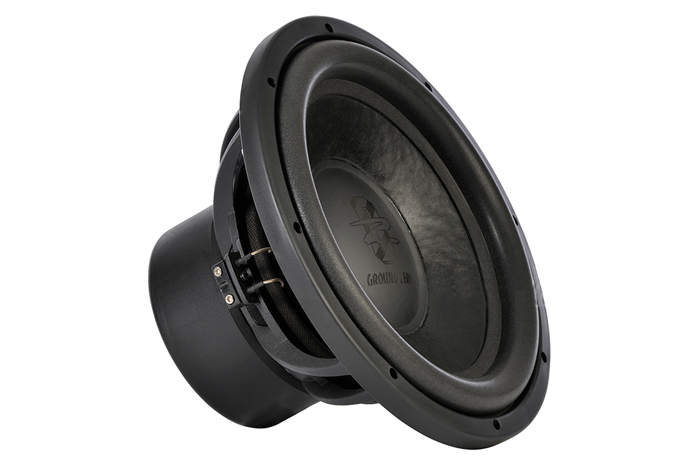

GROUND ZERO GZUW 10SQX

Product Name

Model :GZUW 10SQX
Brand :GROUND ZERO
Specificity :독일 그라운드 제로 10인치 서브우퍼

Product description

그라운드 제로 서브우퍼 리얼한 저역의 힘을 느낄수 있는 그라운드 제로만의 묵직함과 SQ의 성향이 그대로 묻어나는 서브우퍼 단순하면서도 우수한 전달력을 보이며 우퍼의 특징을 SQ적 성향으로 함께 즐길수 있는 용도까지 가지고있는 만능 서브우퍼

Product Name :

GZUW 10 SQX

Product Type :

Subwoofer chassis

H.Art.nr. :

125033

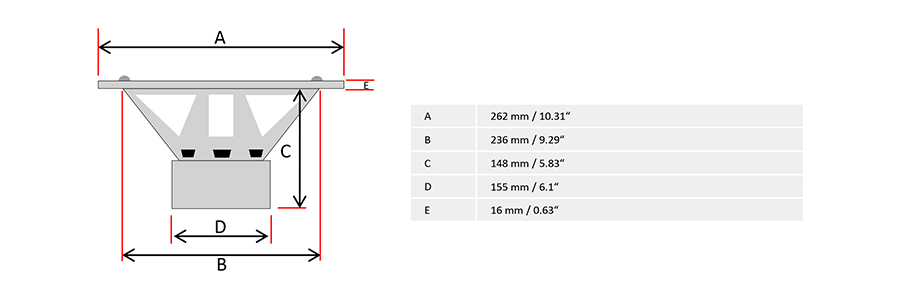

Diameter :

262mm / 10.31"

Mounting diameter :

236mm / 9.29”

Mounting depth :

148mm / 5.83”

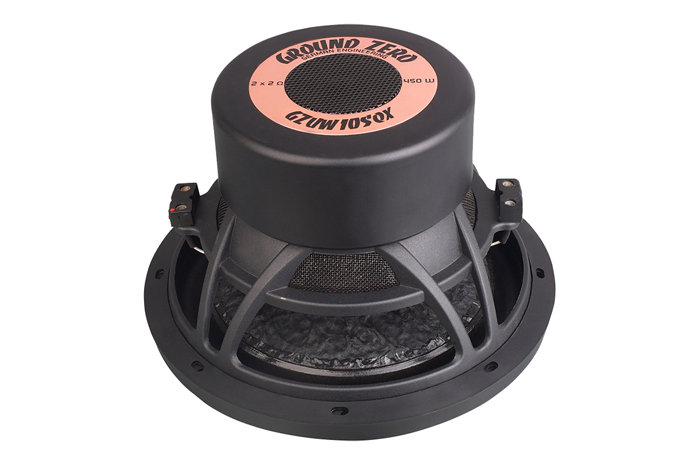

Magnet dimension :

2 X 140 X 22mm

Total weight :

5.9 KG

Voice coil diameter :

50mm / 2" Round Wire

Voice coil winding height :

30mm / 1.18"

Voice coil wire material :

Copper

Voice coil former material :

Kapton

Top plate height :

10mm / 0.393”

Linear excursion(one direction) :

10mm / 0.393”

Effective Xmax :

20 / 0.79"

Top plate and T-Yoke color :

Black

Basket material :

Aluminium Cast

Basket color :

Black

Spider :

1xpolycot

Surround :

VOXR U Shape foam

Cone :

Reinforced paper

Dustcap :

Plastic Coated Paper

Magnetcover :

Rubberboot

Gasket :

PVC

Terminal :

Screw Block

Power handing :

450 WRMS

Impedance :

2 X 2 Ohm

Re :

4.4 Ohm

Res :

55.0 Ohm

FS :

46.7 Hz

Qms :

9.64

Qes :

0.67

Qts :

0.62

Rms :

3.8 kg/s

Cms :

0.09 mm/N

Mms :

124.8 gr

BL :

15.5 N/A

SPL :

85.2 dB

VAS :

14.2 L / 0.50 cu.ft

Le :

2.88 mH

Recommended freq. response :

35 ~ 100 Hz

Recommended amplifier power :

300 ~ 600 WRMS @ 4 Ohm(1 Ohm)

Surround Quality :

SPL Competition :

Low bass performance 20 ~ 50 Hz :

Mid bass performance 50 ~ 80 Hz :
