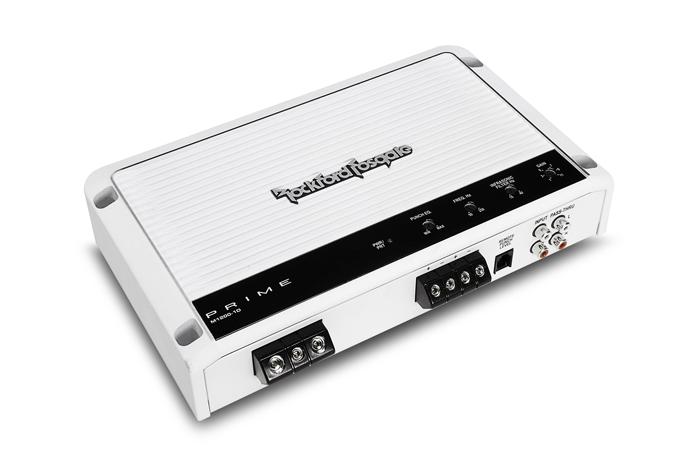

Rockford Fosgate Marine M1200-1D

Product Name

  • Model : M1200-1D
  • Brand : Rockford Fosgate
  • Specificity : 마린 1,200W 모노 앰프

Product description

M1200-1D는 1200W의 모노 고효율 Class-D 해상 앰프로서, 마린급 PC 보드, 온보드 펀치 EQ, 초음파 필터, 가변 크로스오버 및 트라이 스테이트 보호 회로를 갖추고 있습니다.

M1200-1D 앰프는 마린과 파워스포트용으로 특수 설계된 1200W급 모노 고효율 Class-D 앰프입니다. 이 앰프는 해상 등급 PC 보드를 갖추고 있으며, Class-D 회로 토폴로지는 매우 효율적이기 때문에 기존의 클래스 A/B 앰프에 비해 충전 시스템의 전류를 훨씬 적게 소비합니다.

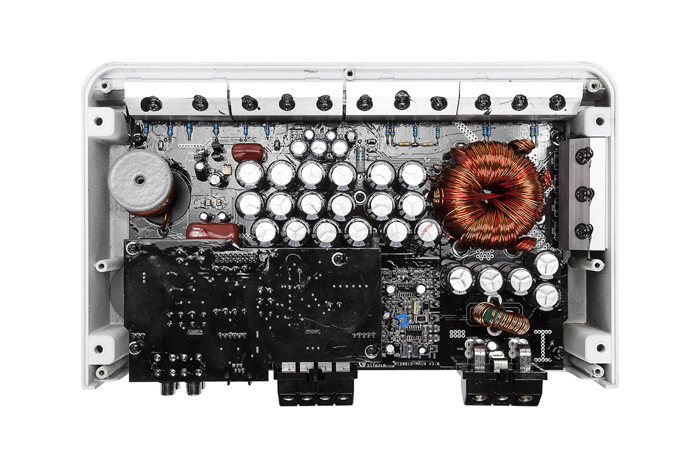

• Marine grade two part epoxy coating on circuit boards
• 12 dB/Oct Butterworth crossovers
• Infrasonic filter
• Remote PLC (Punch Level Control)
• On-board Punch EQ with +18dB boost @ 45Hz
• RCA pass-thru outputs
• Real time output and power supply thermal sensing
• On-board Punch EQ with +18dB boost @ 45Hz
• Remote PLC (Punch Level Control)
• Cast aluminum heat sink

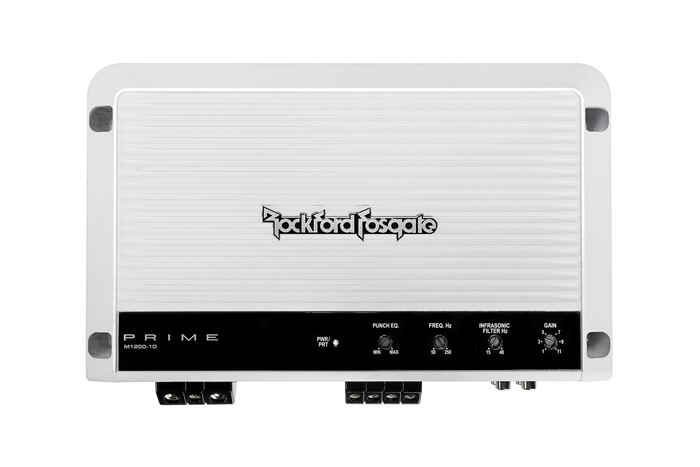

• Top mounted controls

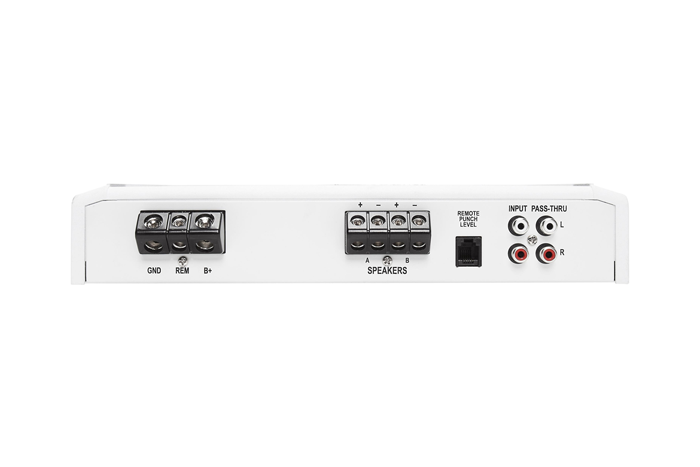

• 4 Gauge power/ground connectors
• MOSFET power supply
• Short circuit protection
• Muted turn on

Specifications
CEA-2006 Compliant
CEA-2006 Power Rating
400W x 1 @ 4Ω
≤1.0% THD+N
Cta-2006 Compliant

Number of Channels
1
Total Power(Sum of Rated Power)
1200 Watts RMS
Rated Power(RMS Continuous Power)
400 Watts x 1 @ 4-Ohm
800 Watts x 1 @ 2-Ohm
1200 Watts x 1 @ 1-Ohm
Dynamic Power(PVC/PowerCube®)
485 Watts x 1 @ 4-Ohm
854 Watts x 1 @ 2-Ohm
1256 Watts x 2 @ 1-Ohm
Bridgeable
No
Frequency Response
20Hz to 250Hz +/-1dB
Input Sensitivity

Circuit Topology Class
Class D
Efficiency (average)
85% @ 4-Ohm
85% @ 2-Ohm
80% @ 1-Ohm
Total Harmonic Distortion (Thd+Noise)

Signal Input
Low Level: 1 RCA Pair
Signal Output
Low Level: 1 RCA Pair
Tone Controls
0dB to +18dB @ 45Hz
Crossover Controls
Variable 50Hz - 250Hz @ 12dB/octave

Specifications
Remote Controls
Punch Level Control
(when connected, is linked to "gain control"
to provide remote output level)
Visual Indicators
Power Protect
Power Wire Gauge
4 AWG
Power Input Connector
Block
Speaker Wire Gauge
12 AWG
Speaker Output Connector
Block
Cooling
Convection
Heatsink

Operating Voltage

Recommended Fuse (Not Included)

Average Current Draw (13.8V Music)

Max. Current Draw (13.8V Sinewave)

Suggested Alternator

Dimensional Diagram

Dimensions (H x W x D)
1.97" x 6.77" x 11.06"
(5cm x 17.20cm x 28.10cm)
Shipping Weight
7.825 Lbs. (7.82 Kg.)
