Rockford Fosgate PMX-3

Product Name

  • Model : PMX-3
  • Brand : Rockford Fosgate
  • Specificity : 마린 2.7” 풀 컬러 디스플레이 디지털 미디어 리시버

Product description

PMX-3은 풀 컬러 2.7" TFT 디스플레이를 갖춘 해양 및 모터 스포츠 분야를 위해 설계한 디지털 미디어 수신기입니다. 이 장치는 사용자가 원하는 기능 (예: 사용자를 위한 GUI 인터페이스 및 사용 편의성을 높인 내장 메뉴 시스템)을 갖추고 있을 뿐만 아니라 USB 또는 Bluetooth를 통한 스마트폰 무선 제어 및 폴더 탐색 기능을 포함한 안드로이드 및 iPhone 모두 지원합니다.

• 2.7" Full color Thin Film Transistor display
• SiriusXM-Ready™ (SXV300 module) with color channel logos (18 channel presets)
• Electrically Erasable Programmable Read-Only Memory (EEPROM) is a type of non-volatile memory used in
electronic devices to store data that must be saved when power is removed
• Integrated voltage gauge w/ low voltage alert
• Wired remote ready (up to 3 remotes)

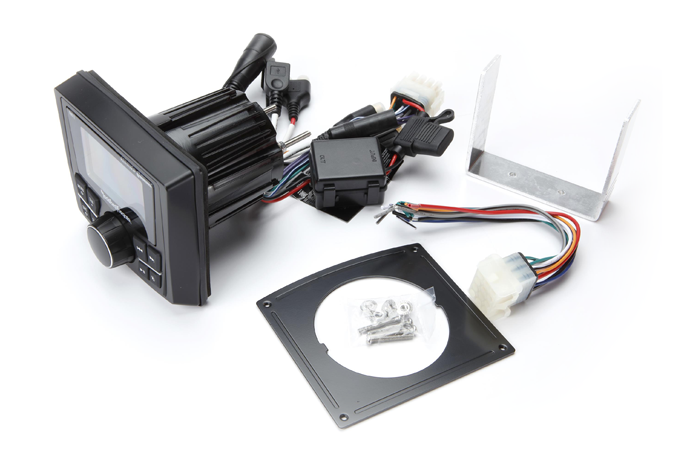

• Two-piece mounting system to secure panel to mounting surface
• Front Panel Sub Control
• Upgradeable Firmware and Bluetooth Software via USB
• IPX6 Marine Grade for prevention of water intrusion
• ASTM: B117 Salt Fog & D4329 UV Exposure Tested
• Single Zone output with 2 channels front full range and 2 channels rear/ subwoofer selectable rated at 2 volt
• Internal power amplifier 4x45W 2Ω stable
• Automotive grade AM/FM Radio, Weatherband Radio digital tuner. Supports Radio Data System (RDS) to receive
broadcast information
• Licensed Pandora control (Apple direct USB or BT/Android via Bluetooth)
• Made for iPhone apple certified
• Bluetooth streaming audio (A2DP) protocol version 1.4 installed
• Rear USB With 1A Charging Only
• Rear AUX-In (L/R)
• Simple Secure Pairing (SSP)
• Display album art from connected iPhones on the radio display
• Folder browsing via BT connected iPhones
• Dedicated DSP audio processors for each zone with independent 7 Band EQ + Punch EQ
• Selectable high pass and low pass crossover points for each zone
• Selectable crossover slopes of 12dB or 24 dB for each zone
• Adjustable input gain for each source
• Waterproof Rotary Encoder Volume Control
• Tactile convex buttons for easy identification
• White LED Button Illumination
• Wired and front panel illumination control
• Wet Bonded Display
• Epoxy coated circuit board for water resistance
• External trigger input to activate reverse camera mode
• Direct composite video input connection
• Day/Night display mode

Bluetooth® (Yes/No)
Yes, 3.0+EDR, A2DP 1.3
Pandora® Internet Radio (Yes/No)
USB Charging (Yes/No)
Apple®/Android™ Compatible (Yes/No)
Speaker Outputs
AUX Input
18 FM / 12 AM / 6 WB
RCA Output Voltage
(1 pr) Front
(1 pr) Rear (or Sub-out)
RCA Output Impedance
Power Output
25W x 4 @ 4Ω RMS
50W x 4 @ 2Ω Peak
≤1.0% THD+N
Speaker Impedance
Device Type
Digital-Media Receiver
Frequency Response
20 Hz - 20 kHz
MEDIA PLAYER Audio Format Compatibility
USB Version
USB Capacity
32Gb max
999 Folders max
999 Songs max
USB Output Current
Compatible Remotes
(3 Remote Limit, 100 ft Total Wired Distance)
Operating Voltage
10.5 V - 16 V
Display Size
2.7” Color TFT
Back Panel Cutout
3" (77mm)
Fuse Rating
20 A
Dimensions (HxWxD)
Width 4.5" (11.5cm)
Face Depth 1.5" (3.8cm)
Mount Depth 2.9" (7.4cm)
Height 4.2" (10.6cm)
Shipping Weight
3.1 Lbs. (1.41 Kg)
