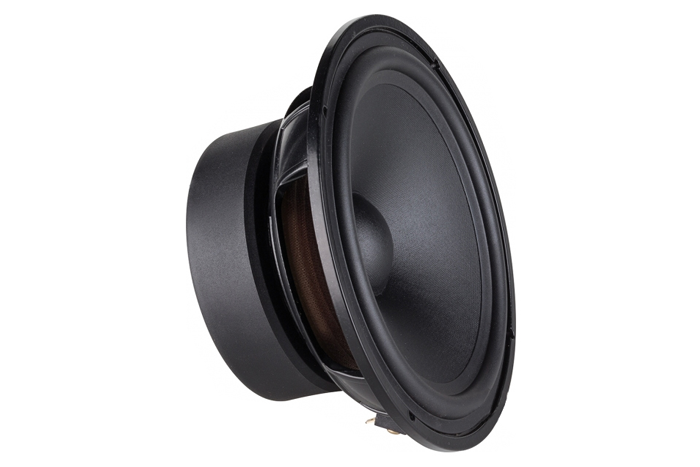

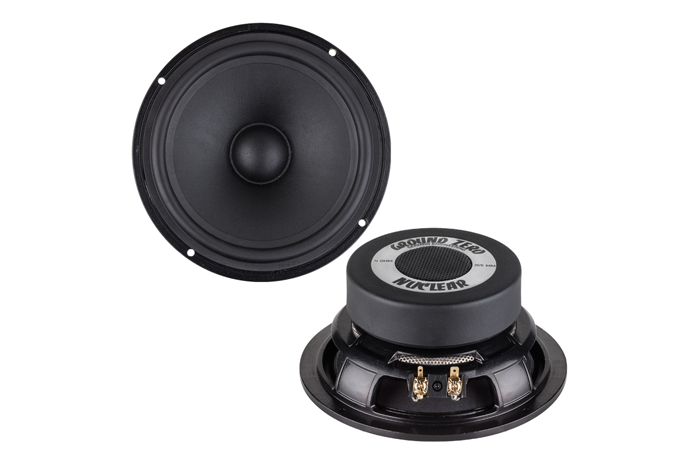

GROUND ZERO GZNK 165SQ

Product Name

  • Model :GZNK 165SQ
  • Brand :GROUND ZERO
  • Specificity :그라운드 제로 중상급 미드스피커

Product description

독일 그라운드 제로 중상급 시리즈인 NUCLEAR 시리즈인 GZNK 165SQ 모델입니다.

Made in Germany 제품으로 음질용 미드스피커로 청명하고 양질감 있는 소리를 내줍니다.

그라운드 제로 60F 트위터와 좋은 궁합을 보여줍니다.

Model :
GZNK 165SQ
Type :
Tiefmittelt^ner / Mid & Kickwoofer
Diameter of midwoofer or midrange :
165mm / 6.5”
Mounting diameter of midwoofer or midrange :
143.5mm / 5.65”
Mounting depth of midwoofer or midrange :
68mm / 2.68”
Voice coil of midwoofer or midrange :
36mm / 1.42”
Cone of midwoofer or midrange :
beschichtetes Papier / coated paper
Dustcap / Phasepluf of midwoofer or midrange :
beschichtetes Papier / coated paper
Basket of midwoofer or midrange :
Gufl / Cast
Magnet of midwoofer or midrange :
Ferrit
Diameter of tweeter :
-
Mounting diameter of tweeter :
-
Mounting depth of tweeter :
-
Voice coil of tweeter :
-
Cone of tweeter :
-
Housing of tweeter :
-
Magnet of tweeter :
-
Power handling WRMS :
130 W
Power handling W peak :
200 W
Impedance :
4 ohm
SPL :
90 dB
Frequency response :
40 ~ 3000 Hz
Model :
GZNK 165SQ
Impedanz / Impedance :
4 ohm
Frequenzgang / Frequency response :
40 Hz ~ 3 kHz
Power Watt RMS :
130
Power Watt Maximum :
200
RE :
3.6 ohm
SPL :
90 dB
FS :
55.2 Hz
QMS :
6.74
QES :
0.72
QTS :
0.65
VAS :
14.6 L / 0.52 cu.ft
MMS :
14.9 Gr
BL :
5.1 N/A
RMS :
0.8 kg/s
CMS :
0.56 mm/N
LE :
0.17 mH
Aussendurchmesser / Outer diameter :
165 mm / 6.5”
Einbaudurchmesser / Mounting diameter :
143.5 mm / 5.65”
Einbautiefe / Mounting depth :
68 mm / 2.68”
