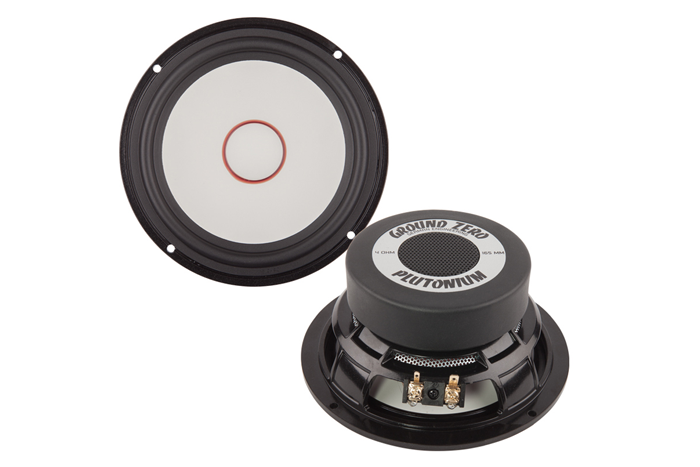

GROUND ZERO GZPK 16SQ

Product Name

  • Model :GZPK 16SQ
  • Brand :GROUND ZERO
  • Specificity :그라운드 제로 상급 미드 스피커 핸드메이드

Product description

독일 그라운드 제로 중상급 시리즈인 PLUTONIUM 시리즈인 GZPK 16SQ 모델입니다.

Made in Germany 제품 이며, 핸드메이드 제품입니다.
음질용 스피커 그라운드 제로 상급 라인으로 사운드 퀄리티가 높은 미드스피커 입니다.

그라운드 제로 60F 트위터와 좋은 궁합을 보여줍니다.

Model :
GZPK 16SQ
Type :
Tiefmittelt^ner / Mid & Kickwoofer
Diameter of midwoofer or midrange :
165mm / 6.5”
Mounting diameter of midwoofer or midrange :
143.5mm / 5.65”
Mounting depth of midwoofer or midrange :
68mm / 2.68”
Voice coil of midwoofer or midrange :
36mm / 1.42”
Cone of midwoofer or midrange :
Alu-Keramik / Alu-ceramic
Dustcap / Phasepluf of midwoofer or midrange :
Alu-Keramik / Alu-ceramic
Basket of midwoofer or midrange :
Aluminium Gusskorb / Aluminium cast
Magnet of midwoofer or midrange :
Ferrit
Diameter of tweeter :
-
Mounting diameter of tweeter :
-
Mounting depth of tweeter :
-
Voice coil of tweeter :
-
Cone of tweeter :
-
Housing of tweeter :
-
Magnet of tweeter :
-
Power handling WRMS :
130 W
Power handling W peak :
210 W
Impedance :
4 ohm
SPL :
90 dB
Frequency response :
30 ~ 3000 Hz
Model :
GZPK 16SQ
Impedanz / Impedance :
4 ohm
Frequenzgang / Frequency response :
30 Hz ~ 3 kHz
Power Watt RMS :
130
Power Watt Maximum :
200
RE :
4 ohm
SPL :
90 dB
FS :
45.3 Hz
QMS :
7.39
QES :
0.67
QTS :
0.62
VAS :
22.1 L / 0.78 cu.ft
MMS :
14.6 Gr
BL :
5.0 N/A
RMS :
0.6 kg/s
CMS :
0.84 mm/N
LE :
0.17 mH
Aussendurchmesser / Outer diameter :
165 mm / 6.5”
Einbaudurchmesser / Mounting diameter :
143.5 mm / 5.65”
Einbautiefe / Mounting depth :
68 mm / 2.68”
