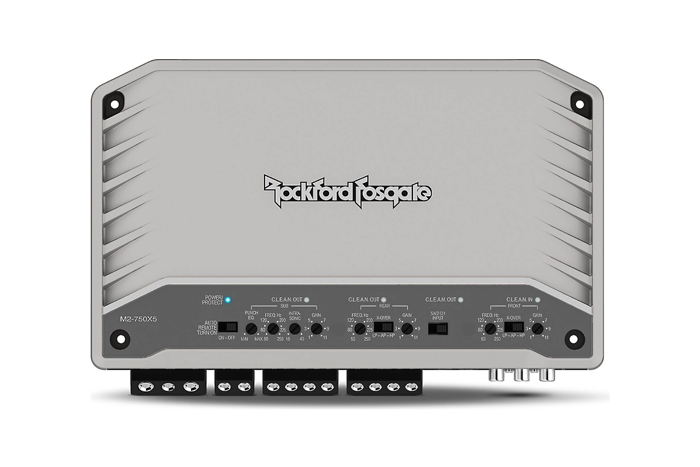

Rockford Fosgate Marine M2-750X5

Product Name

  • Model : M2-750X5
  • Brand : Rockford Fosgate
  • Specificity : 마린 750W 5채널 앰프

Product description

M2 시리즈는 자외선 차단 보호 기능과 물로부터 전자 장치를 보호하는 특수 내부 컨포멀 코팅으로 해양 오디오 환경을 위해 개발되었습니다. Rockford Fosgate에서 기대할 수 있는 모든 성능과 경제적인 가격으로 안정적인 앰프를 원하는 사용자를 위해 설계되었습니다. Rockford Fosgate 앰프는 "낮은 등급"으로 모든 사양을 쉽게 능가하여 더 많은 전력을 생성하는 것으로 세계적으로 유명합니다. 최신 세대의 M2 시리즈 앰프는 설정 및 구성이 용이하도록 설계되어 모든 애플리케이션에서 사용하기에 완벽합니다.

• Element Ready™ design protects against outdoor exposure

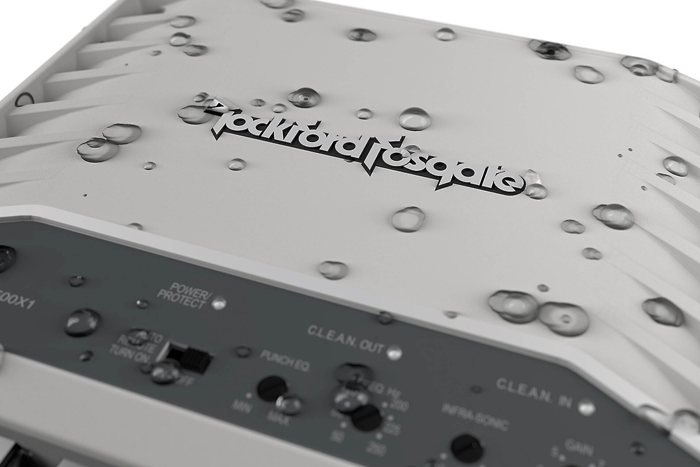

• Conformal coated circuit board protects against dust and water
• UV stable powder coated cast aluminum heatsink
• Zinc Nickel-plated Marine grade brass connection terminals
• C.L.E.A.N. input/output clip detection and indicator LEDs
• Optimized using AudioGraph PowerCube measurement tool
• Continuously Variable On Board Punch EQ

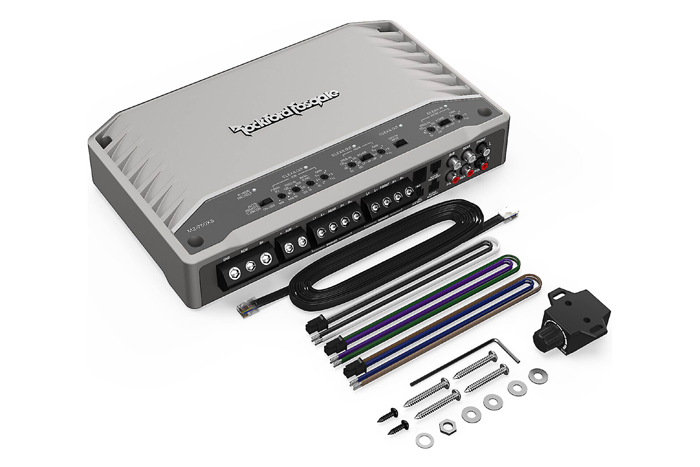

• Includes RLC Remote Level Control
• Focused mass heat sink allows critical aluminum material to be located around hottest internal devices

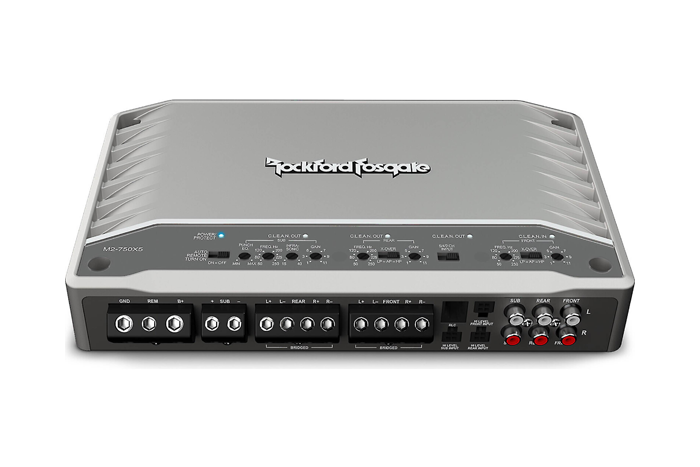

• Top Mounted Control Panel
• Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
• 2/4/5 Channel Input Selection Switch
• Short Circuit & Over Current Protection
• Variable Infrasonic Filter
• Integrated Power and Speaker Terminals
• Balanced Differential Inputs eliminates noise picked up by signal cables
• Integration with OEM and Aftermarket Radios
• "Auto-Sense" turn-on with remote out (high level in)
• Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
• Low Impedance Stability
• Proprietary testing using RATS (Rockford Automated Testing System)
• CEA-2006 Compliant & CE Compliant
• Rollback Protection
Specifications
Number of Channels
5
Total Power(Sum of Rated Power)
750 Watts
Rated Power(RMS Continuous Power)
50 Watts x 4 + 200 Watts x 1 @ 4Ω
100 Watts x 4 + 350 Watts x 1 @ 2Ω
200 Watts x 2 + N/A @ 4Ω Bridged/Mono
Dynamic Power(PVC/PowerCube®)
70 Watts x 4 + 241 Watts x 1 @ 4Ω
114 Watts x 4 + 426 Watts x 1 @ 2Ω
234 Watts x 2 + N/A @ 4Ω Bridged/Mono
Bridgeable
Yes
Frequency Response
20 Hz - 20 kHz
Input Sensitivity
Low-Level: 150 mV - 4 V
High-Level: 450 mV - 12 V
Circuit Topology Class
Class D
Total Harmonic Distortion (Thd+Noise)
4Ω: ＜ 1.0%
2Ω: ＜ 1.0%

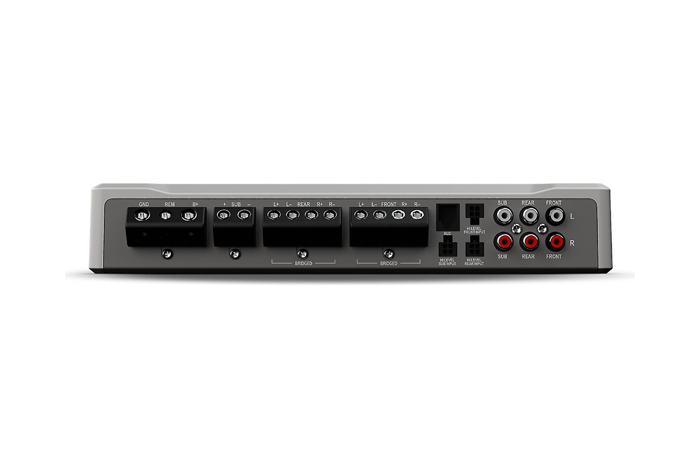

Signal Input
Front Low-Level: 2 RCA
Front High-Level: 4-Pin Molex
Rear Low-Level: 2 RCA
Rear High-Level: 4-Pin Molex
Sub Low-Level: 2 RCA
Sub High-Level: 4-Pin Molex
Signal Output
N/A
Tone Controls
0 to +18 dB @ 45 Hz
Crossover Controls
Front High-Pass:50 Hz - 250 Hz @ 12dB/Octave Butterworth
Front Low-Pass:50 Hz - 250 Hz @ 12dB/Octave Butterworth
Rear High-Pass:50 Hz - 250 Hz @ 12dB/Octave Butterworth
Rear Low-Pass:50 Hz - 250 Hz @ 12dB/Octave Butterworth
Sub Low-Pass:50 Hz - 250 Hz @ 12dB/Octave Butterworth
Sub Infrasonic:15 Hz - 40 Hz @ 12dB/Octave Butterworth
Remote Controls
Yes
Visual Indicators
Power/Protect
C.L.E.A.N. In
C.L.E.A.N. Out (front)
C.L.E.A.N. Out (rear)
C.L.E.A.N. Out (sub)
Power Wire Gauge
4 AWG
Power Input Connector
Compression Terminal Block
Speaker Wire Gauge
8 AWG
Speaker Output Connector
Compression Terminal Block
Cooling
Convection
Operating Voltage
9 - 16 VDC
Recommended Fuse (Not Included)
120A
Max. Current Draw (13.8V Sinewave)
71 A
Dimensions (H x W x D)
1.9" x 6.8" x 11.2"
(4.9cm x 17.3cm x 28.5cm)
