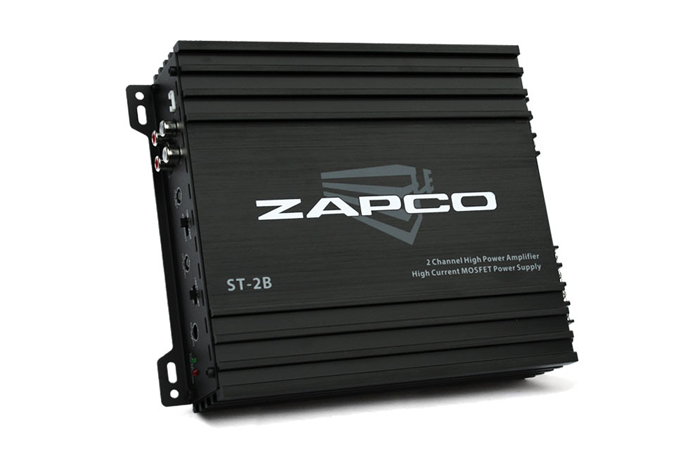

ZAPCO ST-2B

Product Name

  • Model :ST-2B
  • Brand :ZAPCO
  • Specificity :2 채널 클래스 AB 증폭기

Product description

새로운 ST-B 앰프는 매일 사용하는 앰프에서 훌륭한 사운드로 고품질의 제품을 제작할 수 있다는 증거입니다.

Features and Functions
2-Channel, Class-AB Full Range Amplidier
Stable into 4 ohms bridged or 2 ohms stereo load
MOSFET power supply
RCA and OEM speaker level input
Variable Inputs Gain Control
Variable FULL / LP / HP Electronic Crossover
Variable Bass Boost
Specification
Power @ 4Ω: 2 x 65 watts
Power @ 2Ω: 2 x 90 watts
Power @ 4Ω Bridged: 1 x 180 watts
THD @ Rated Power < 0.1%
Signal to Noise Ratio > 97dB
Channel separation > 45dB
Frequency Response 20Hz to 20,000Hz ±1dB
Input Sensitivity .25v to 5v
Dimensions in mm: 182(W) x 52(H) x 200(L)
Overall: 182(W) x 52(H) x 230(L)

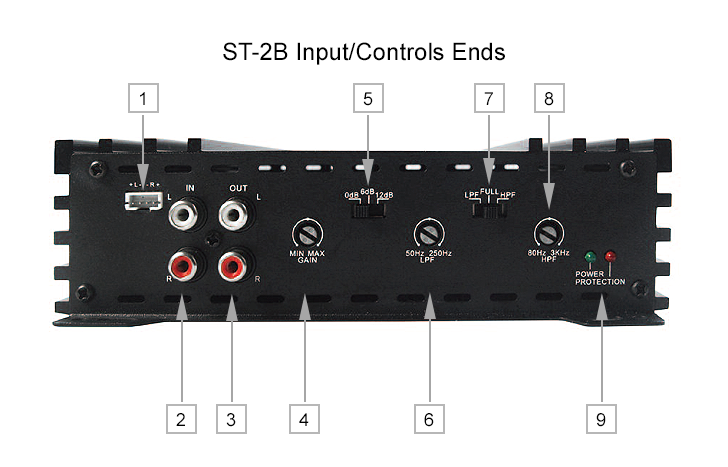

1. Speaker level input plug for OEM hookup
2. RCA inputs from an after-market head unit
3. Pass through RCA output allows "daisy chaining" amplifiers
4. Variable gain control (set to minimum before initial turn-on)
5. Bass boost switch for 0, 6dB, or 12dB
6. Low Pass frequency selector for the bass crossover
7. Crossover selector for low pass, full range, or high pass
8. High pass filter for the mids/highs
9. Green power-on LED and red protect LED
